Loyz Carrier Aug-2015

Vessel Specification:

Scope of work:
PMS provide Diving Service for Oil Tank Loyz Carrier include:

Details:

1. Thrusters:

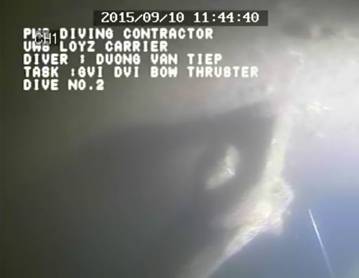

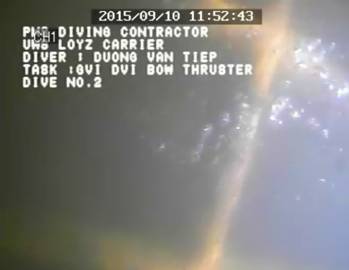

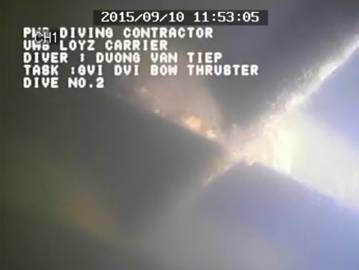

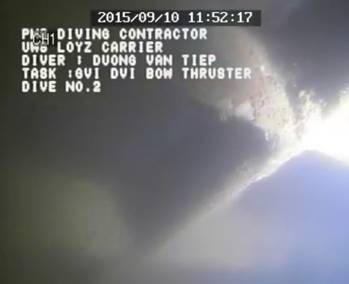

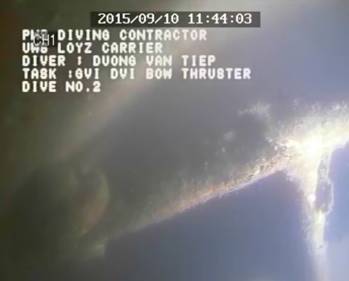

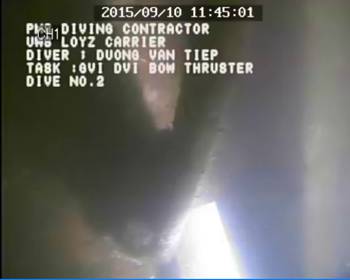

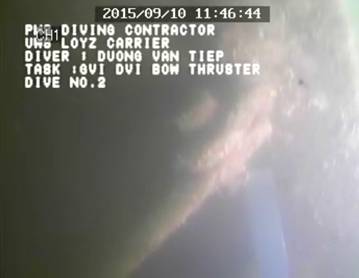

1.1 Bow thrusters:

All of grating, thruster tunnel, hup, cap, blades... were found in good condition.
The bolts and nut stoppers are intact.
All of marine growth is removed by divers.

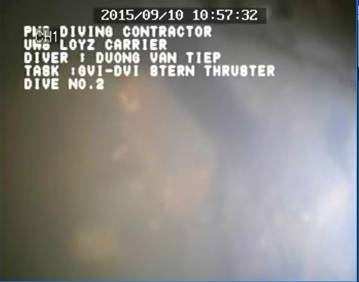

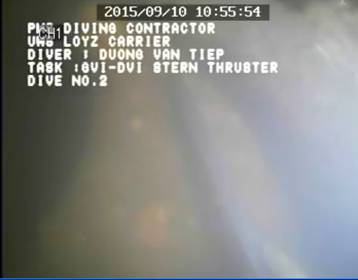

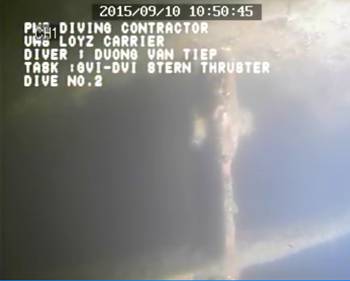

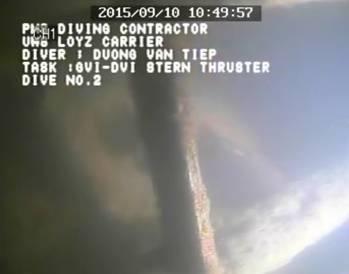

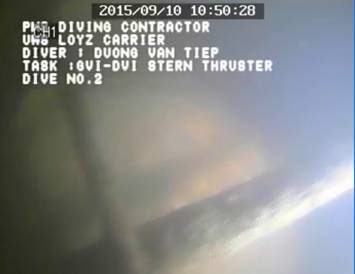

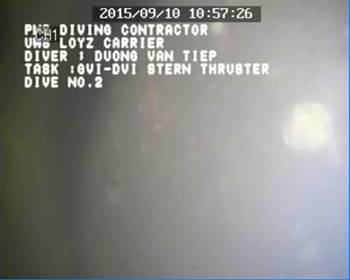

1.2 Stern thruster:

All of grating, thruster tunnel, hub, cap, blades... were found in good condition.
The bolts and nut stoppers are intact.
All of marine growth is removed by divers.

2. Main Propellers:

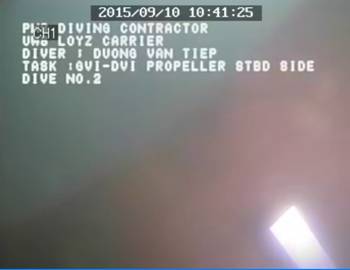

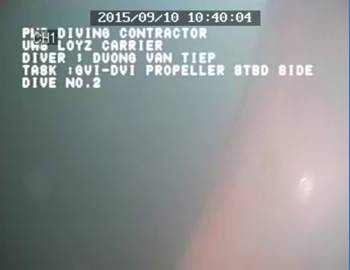

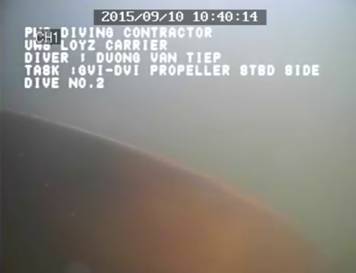

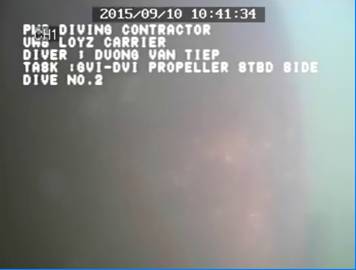

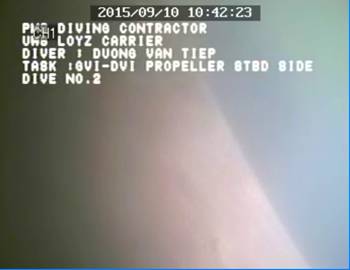

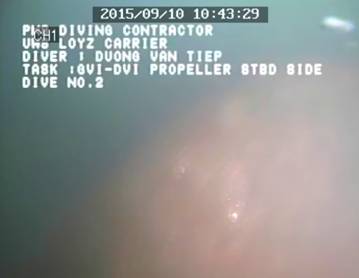

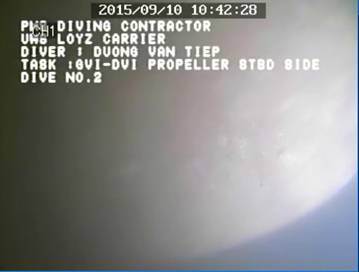

2.1 Starboard side propeller:

Starboard side propeller is found in good condition.
The bolts and nuts, nut stoppers are intact.
No signal of oil leaking was found.
The covered condition of marine growth: soft marine growth is 100%, hard marine growth is about 60 - 70%

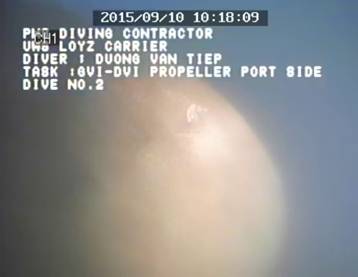

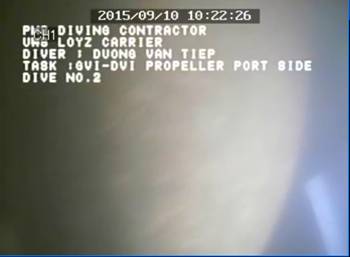

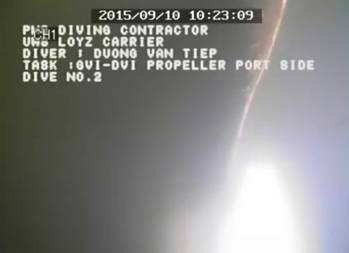

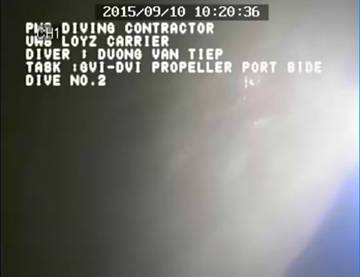

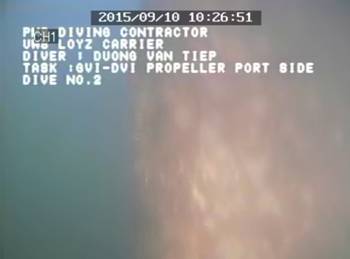

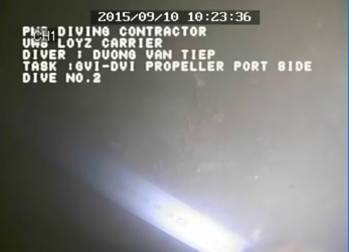

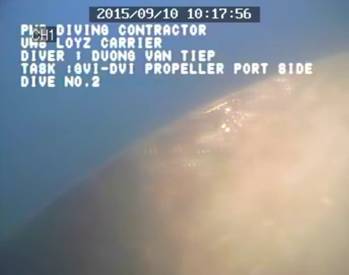

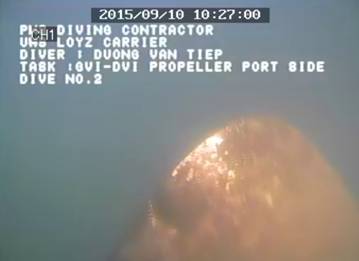

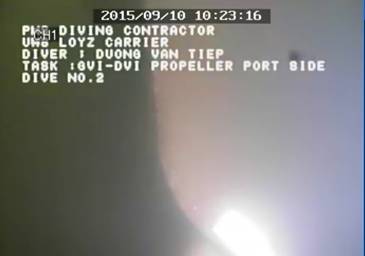

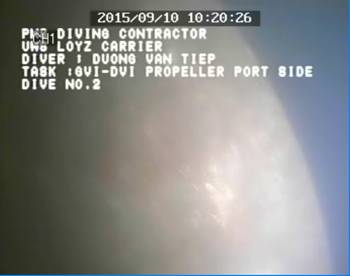

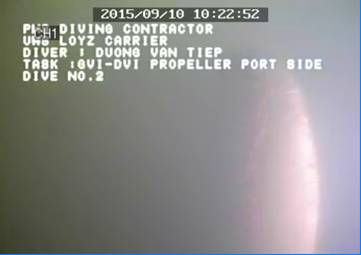

2.2 Portside propeller:

The bolts and nuts, nut stopper are intact.
No sign of oil leaking was found.
The covered condition of marine growth: soft marine growth is 100%, hard marine growth is about 60-70%

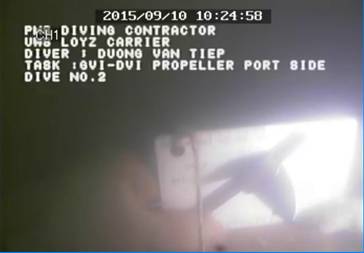

A bended area ( abt: 200mm x 150mm) and a missing material ( 5mm x 5mm) was found on the tip of blade.

Diver use rulers to check the interval of the bend area.

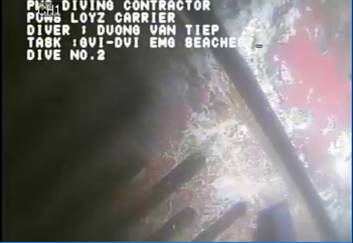

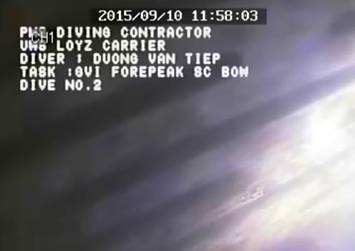

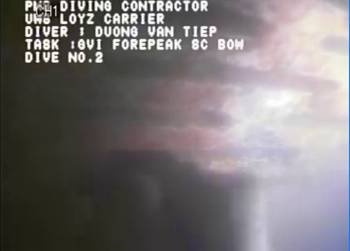

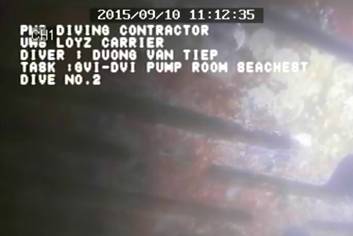

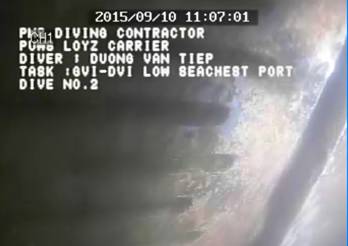

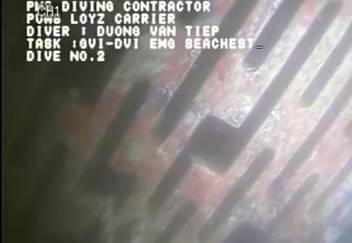

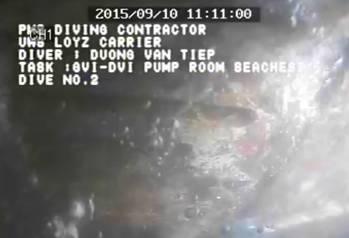

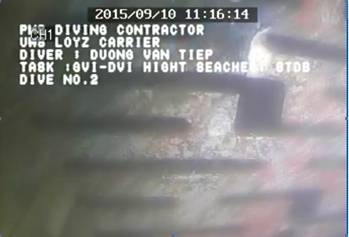

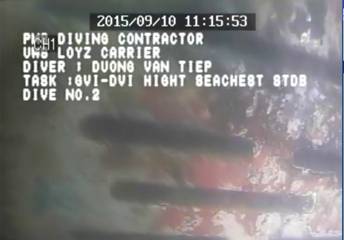

3. Sea chests :

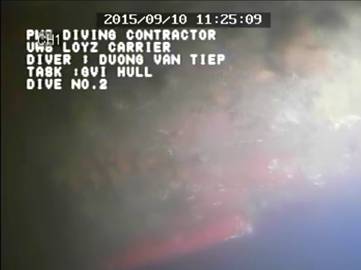

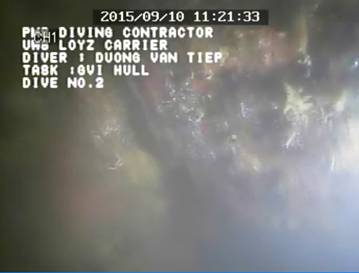

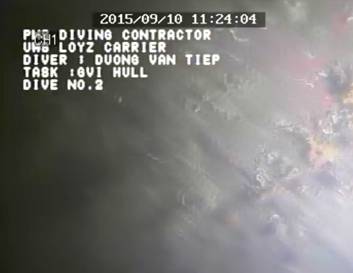

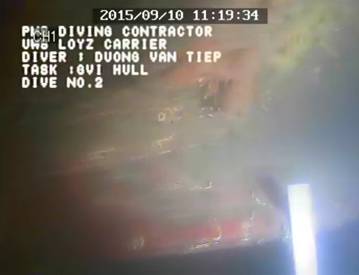

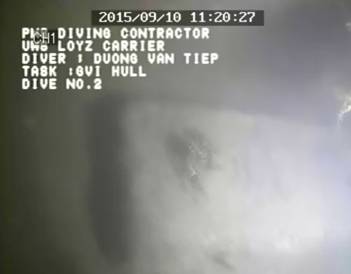

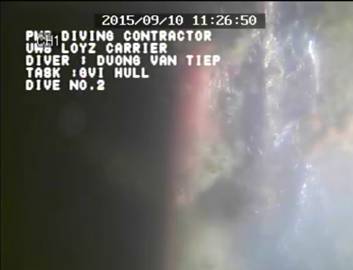

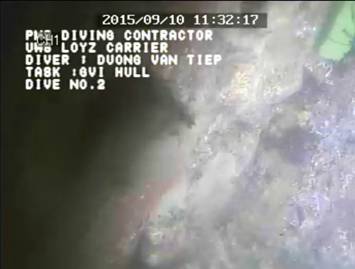

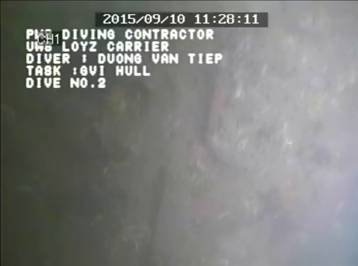

4. Vessel shell ( port & starboard side shell, bottom) Plating and welding seams were found in good condition, the coating is peeled about 5-10%. The covered condition of marine growth: soft marine growth is 100%, hard marine growth is about 60-70%. The anodes are remaining about 70%.

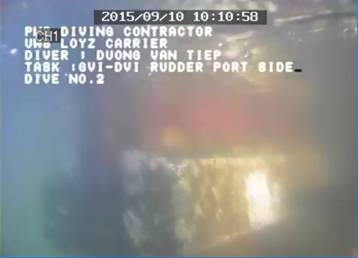

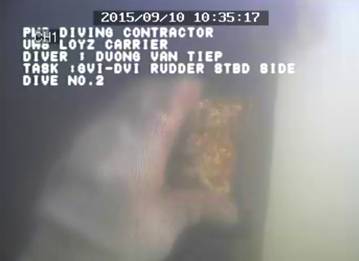

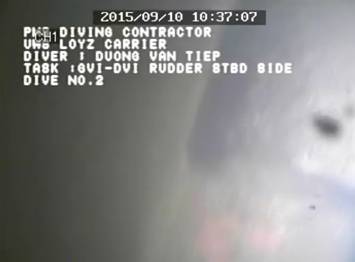

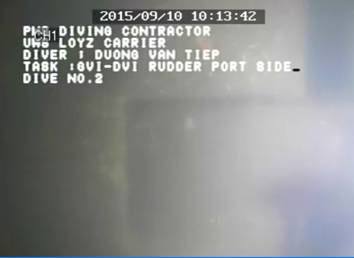

5. Rudder ( Portside, starboard side).

Above haft of the rudders are still good condition, under haft is covered by marine growth: Soft marine growth is nearly 100%, hard marine growth is50-60%.
The anodes are remaining about 70-80%.

Comments:

Bended and missing material areas of the portside blade should be repaired soon.
Should be considered about underwater cleaning main propellers, vessel's shell...
